Introduction

Overview

The surface degradation of layered transition metal (TM) oxide and other related cathode compositions have been characterized extensively in experiments, however how the reactions take place on the cathode surface and the surface reconstructions form on the atomic scale is still lacking. The surface phase diagram as a function of the state of charge and the temperature can offer insights into atomic-scale processes that are challenging to probe experimentally.

_images/2D-3D-surface-pd-demo.png

To construct the surface phase diagram, slab models with different surface compositions need to be created. The surface phase diagram shown on the left above only has four phases that are predicted to be stable in the range of 0 to 5 V and 0 to 1500 K. However, behind the most stable phases shown on the surface phase diagram, hundreds/thousands meta-stable phases should also be calculated. The figure shown above on the right illustrates how the three-dimensional surface phase diagram looks like when “all” enumerated slab models are considered.

Strategy

This package takes use of the method developed in enumlib code, but in contrast to conventional enumlib code, we apply the systematic enumeration to only part of the slab model, creating vacancies on the surface. Then by taking the advantage of inherent inversion symmetry center of the slab models, the top surface will be symmetrized to the bottom surface, i.e. a symmetrically equivalent modification was introduced at the bottom of the slab models. For detailed description, please see: Surface enumeration.

Architecture

_images/architecture.png

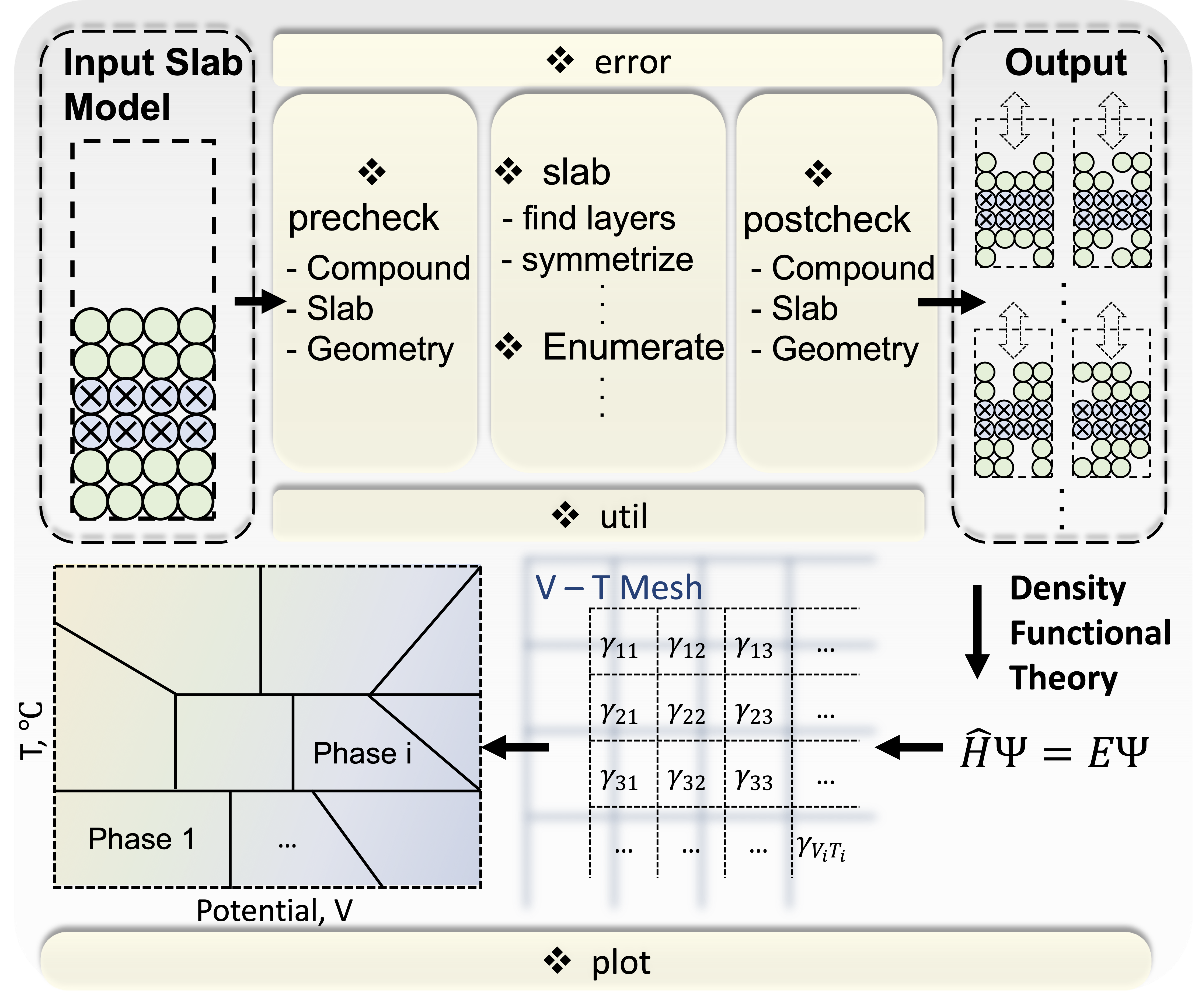

The surface-pd package consists of the following 5 sub-packages:

  • analysis sub-package includes analysis modules to analyze and manipulate the slab models.

  • core sub-package includes core modules to check, build, enumerate, and symmetrize the slab models.

  • error sub-package includes error modules defined for users to quickly identify the problems.

  • plot sub-package includes plot modules to manage and analyze the DFT results, define the equations of surface free energy calculations, and construct the 3D surface phase diagrams.

  • util sub-package includes util modules to define some utility functions.
