Slab Model Surface Enumeration

Slab model preparation

The slab model can be truncated from the bulk structure model. Assume now, you already have a slab model. The DFT structure input file in VASP format should like this.

Li4 Co3 O8
1.0
2.832550 0.000000 0.000000
-1.416275 2.453061 0.000000
0.000000 0.000000 31.000000
Li Co O
4 3 8
Selective dynamics
direct
0.000000 0.000000 0.199664 F F F Li # atom index = 0
0.333333 0.666667 0.047755 T T T Li # atom index = 1
0.666667 0.333333 0.351573 F F F Li # atom index = 2
0.333333 0.666667 0.503483 T T T Li # atom index = 3
0.666667 0.333333 0.123709 T T T Co # atom index = 4
0.333333 0.666667 0.275619 F F F Co # atom index = 5
0.000000 0.000000 0.427529 T T T Co # atom index = 6
0.333333 0.666667 0.156909 T T T O  # atom index = 7
0.000000 0.000000 0.090509 T T T O  # atom index = 8
0.666667 0.333333 0.242419 F F F O  # atom index = 9
0.666667 0.333333 0.005000 T T T O  # atom index = 10
0.000000 0.000000 0.546237 T T T O  # atom index = 11
0.000000 0.000000 0.308819 F F F O  # atom index = 12
0.666667 0.333333 0.460728 T T T O  # atom index = 13
0.333333 0.666667 0.394328 T T T O  # atom index = 14

Note that the surface regions are defined by having the selective dynamics labeled at the end, represented by “T T T” as relaxed and “F F F” as fixed. These properties are required to build a slab model.

Note

Please make sure that the input slab model has the statement of constraints because the code takes use of the constraints to distinguish relaxed and fixed regions in the slab model.

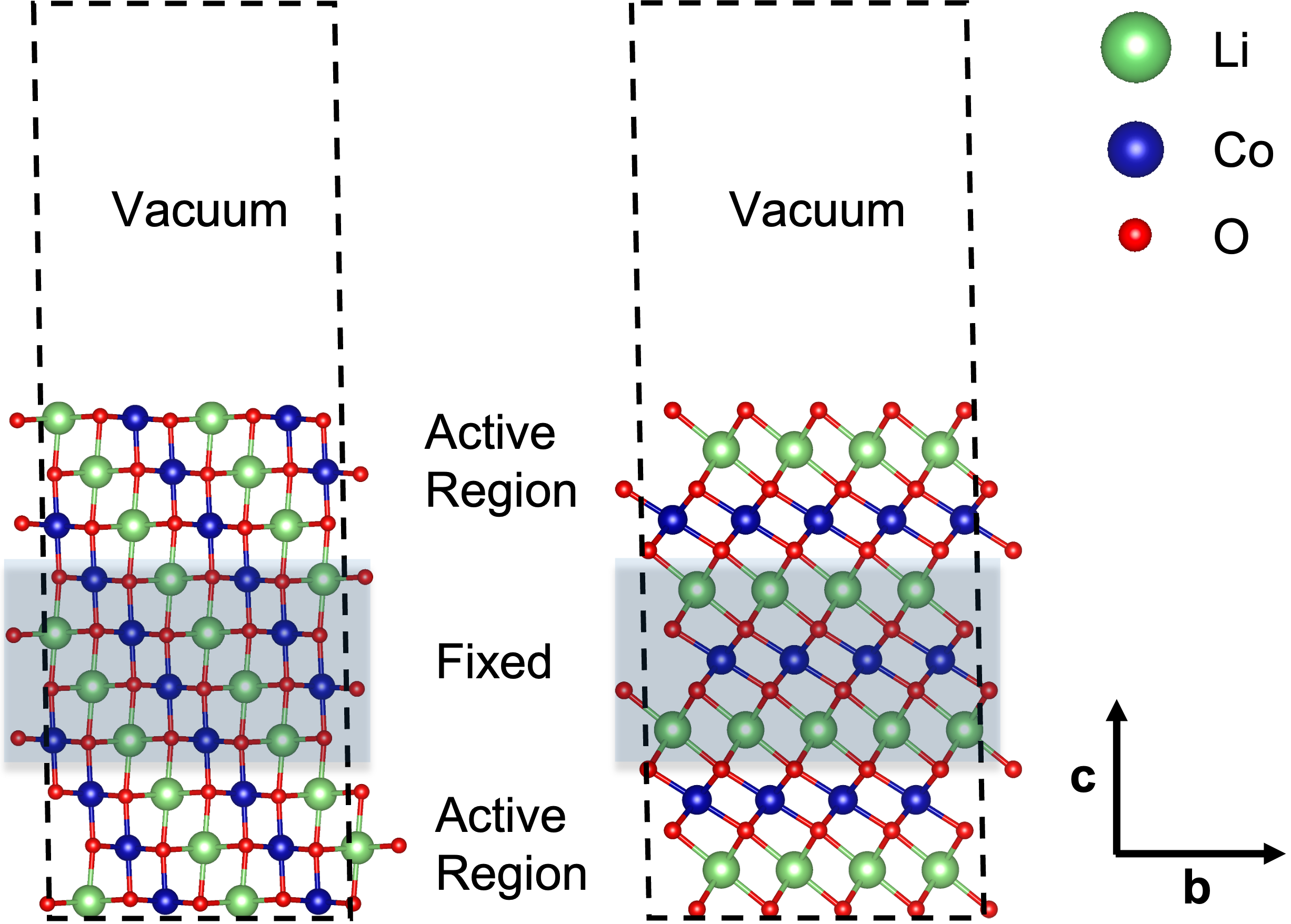

The following figures show the example (001) and (104) surface slab models of LiCoO2.

_images/slab-model-demo.png

Command line execution

The general usage of the code can be seen by calling:

$ surface-enumeration.py --help

All of the available options and their default values will be shown.

General long format:

$ surface-enumeration.py 'slab model' --target-cell-size 'int' --lithium-composition 'float(0<=x<=1)' --oxygen-composition 'float(0<=y<=1)' --generate-poscar

General short format:

$ surface-enumeration.py 'slab model' -s 'int' -L 'float(0<=x<=1)' -O 'float(0<=y<=1)' -g

For example, you can go to surface-pd/example/enumeration-examples/LCO and try to do a full enumeration on the (104) surface slab model of LiCoO2.

$ surface-enumeration.py LCO_terminated_LCO_10L15A.vasp -s 2

For this slab model, it has 2 Li and O atoms in the surface relaxed region. Since the target number of Li and O atoms is set to 4 for this example case, you can always see the --target-cell-size option turns on and is set to 2 in the following examples in order to create the supercell.

If everything goes well, you should see the following:

target_cell_size = 2
Composition of lithium on the surface will be [1.0, 0.75, 0.5, 0.25, 0.0].
Composition of oxygen on the surface will be [1.0, 0.75, 0.5, 0.25, 0.0].
Scaling matrix used here is: [2, 1, 1]
The enumeration found 1 (0+1) distinct structures for 100.0% Li and 100.0% O.
The enumeration found 4 (4+0) distinct structures for 100.0% Li and 75.0% O.
The enumeration found 6 (6+0) distinct structures for 100.0% Li and 50.0% O.
The enumeration found 4 (4+0) distinct structures for 100.0% Li and 25.0% O.
The enumeration found 1 (0+1) distinct structures for 100.0% Li and 0.0% O.
The enumeration found 4 (4+0) distinct structures for 75.0% Li and 100.0% O.
The enumeration found 16 (16+0) distinct structures for 75.0% Li and 75.0% O.
The enumeration found 24 (24+0) distinct structures for 75.0% Li and 50.0% O.
The enumeration found 16 (16+0) distinct structures for 75.0% Li and 25.0% O.
The enumeration found 4 (0+4) distinct structures for 75.0% Li and 0.0% O.
The enumeration found 6 (6+0) distinct structures for 50.0% Li and 100.0% O.
The enumeration found 24 (24+0) distinct structures for 50.0% Li and 75.0% O.
The enumeration found 36 (36+0) distinct structures for 50.0% Li and 50.0% O.
The enumeration found 24 (24+0) distinct structures for 50.0% Li and 25.0% O.
The enumeration found 6 (0+6) distinct structures for 50.0% Li and 0.0% O.
The enumeration found 4 (4+0) distinct structures for 25.0% Li and 100.0% O.
The enumeration found 16 (16+0) distinct structures for 25.0% Li and 75.0% O.
The enumeration found 24 (24+0) distinct structures for 25.0% Li and 50.0% O.
The enumeration found 16 (16+0) distinct structures for 25.0% Li and 25.0% O.
The enumeration found 4 (0+4) distinct structures for 25.0% Li and 0.0% O.
The enumeration found 1 (0+1) distinct structures for 0.0% Li and 100.0% O.
The enumeration found 4 (4+0) distinct structures for 0.0% Li and 75.0% O.
The enumeration found 6 (6+0) distinct structures for 0.0% Li and 50.0% O.
The enumeration found 4 (4+0) distinct structures for 0.0% Li and 25.0% O.
The enumeration found 1 (0+1) distinct structures for 0.0% Li and 0.0% O.
256 distinct structures are found totally.

If you only want to enumerate the slab model with 50% coverage of Li and O atoms on the surface relaxed region, you can try:

$ surface-enumeration.py LCO_terminated_LCO_10L15A.vasp -s 2 -L 0.5 -O 0.5

If the --generate-poscar optional argument is defined, you should be able to see the saved enumerated slab models locally. The slab models are stored in VESTA format and should be able visualize via VESTA.
